PE PP woven bags recycling line for SJ85 extruderThis PE PP woven bags recycling line is special for soft mater
InquirePE PP woven bags recycling line for SJ85 extruder

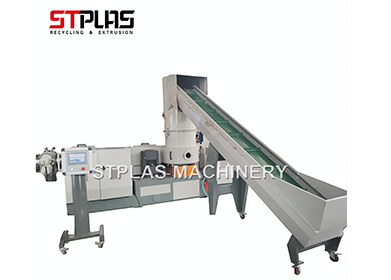

PE PP woven bags recycling line for SJ85 extruder
This PE PP woven bags recycling line is special for soft material like clean bags, films etc., It has one compactor, the blades inside, big size film/bags can also put inside directly. No need extra crusher process.
According different material and different customer requirement. You can choose
-Different L/D ratios
-Multiple exhaust screw
-Single stage/ Double stage
-water ring cutting/ strand pelletizing
-capacity from 200-1000kg/h
The pallets can be sold directly, or go to extruder, injection molding, bags/films blowing etc.
Main Technical Parameter:
Single Stage
Model | STML65 | STML85 | STML 100 | STML130 | STML160 |
Screw Dia. | 65 | 85 | 100 | 130 | 160 |
L/D Ratio | 33:1 | 33:1 | 33:1 | 33:1 | 33:1 |
Capacity (kg/h) | 60-100 | 150-250 | 200-350 | 400-500 | 500-600 |
Compactor Motor (kw) | 22 | 37 | 55 | 90 | 110 |
Extruder Main Motor (kw) | 37 | 55 | 90 | 132 | 185 |
Total Electric Power(kw) | 110 | 150 | 205 | 300 | 395 |
Two stages:
Model | STML85/85 | STML 100/100 | STML130/130 | STML160/160 | STML180/200 |
Screw Dia. | 85 | 100 | 130 | 160 | |
L/D Ratio | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 |
Capacity (kg/h) | 150-250 | 250-350 | 400-500 | 500-600 | 900-1100 |
Compactor Motor (kw) | 37 | 55 | 90 | 110 | 185 |
First Stage Motor (kw) | 55 | 90 | 132 | 185 | 250 |
Second Stage Motor (kw) | 22 | 30 | 45 | 55 | 75 |
Total Electric Power(kw) | 185 | 235 | 370 | 477 | 675 |
Flow Chat of PE PP woven bags recycling line :
Water ring pelletizing/water strand pelletizing
Conveyor → woven bags/films compactor → Single screw extruder(1st stage) → hydraulic screen changer → Single screw extruder (2nd Stage) → hydraulic screen changer → die head → Water ring pelletizing →Water tank → Dewatering machine → Vibration sieve → Air blower → Storage silo
Features of plastic bags pelletizer:
l High efficiency force-feeder ensures high capacity feeding ,low energy consumption.
l Extruder of plastic film pelletizer machine :double stage pelletizing.
l Single screw extruder, equipped with specially designed screw & barrel, venting system, has avery good output capacity.
l Pelletizing style: water-ring and water cooling strand cutting with extrusion mould, even cutting ensures good shape.

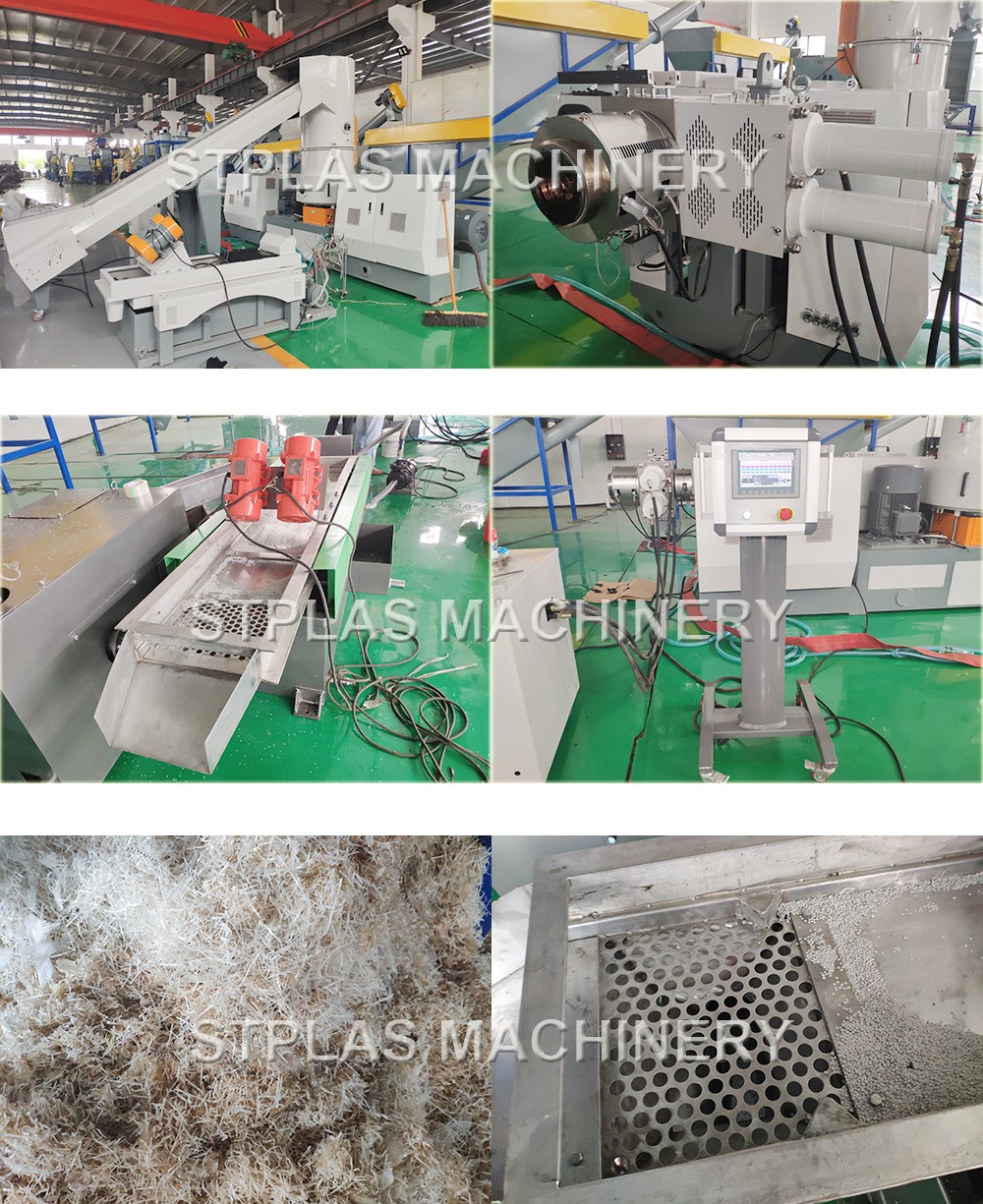

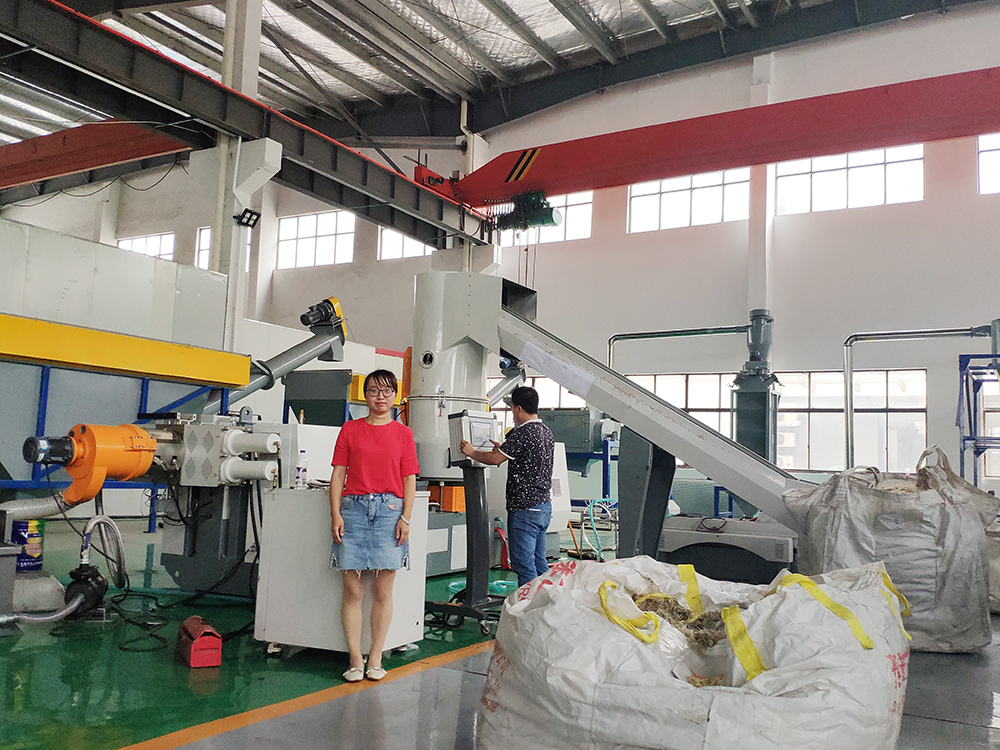

More Photos of our machine:
Welcome to contact with us
We also can do HDPE bottles recycling line, PP PE film washing line, PP woven bags washing line, HDPE washing line, PET washing line.
