PP pelletizing line withsoft materialThis system designed as customers requirement:1 PP woven bags Griner, to make
InquirePP pelletizing line with soft material
This system designed as customers requirement:

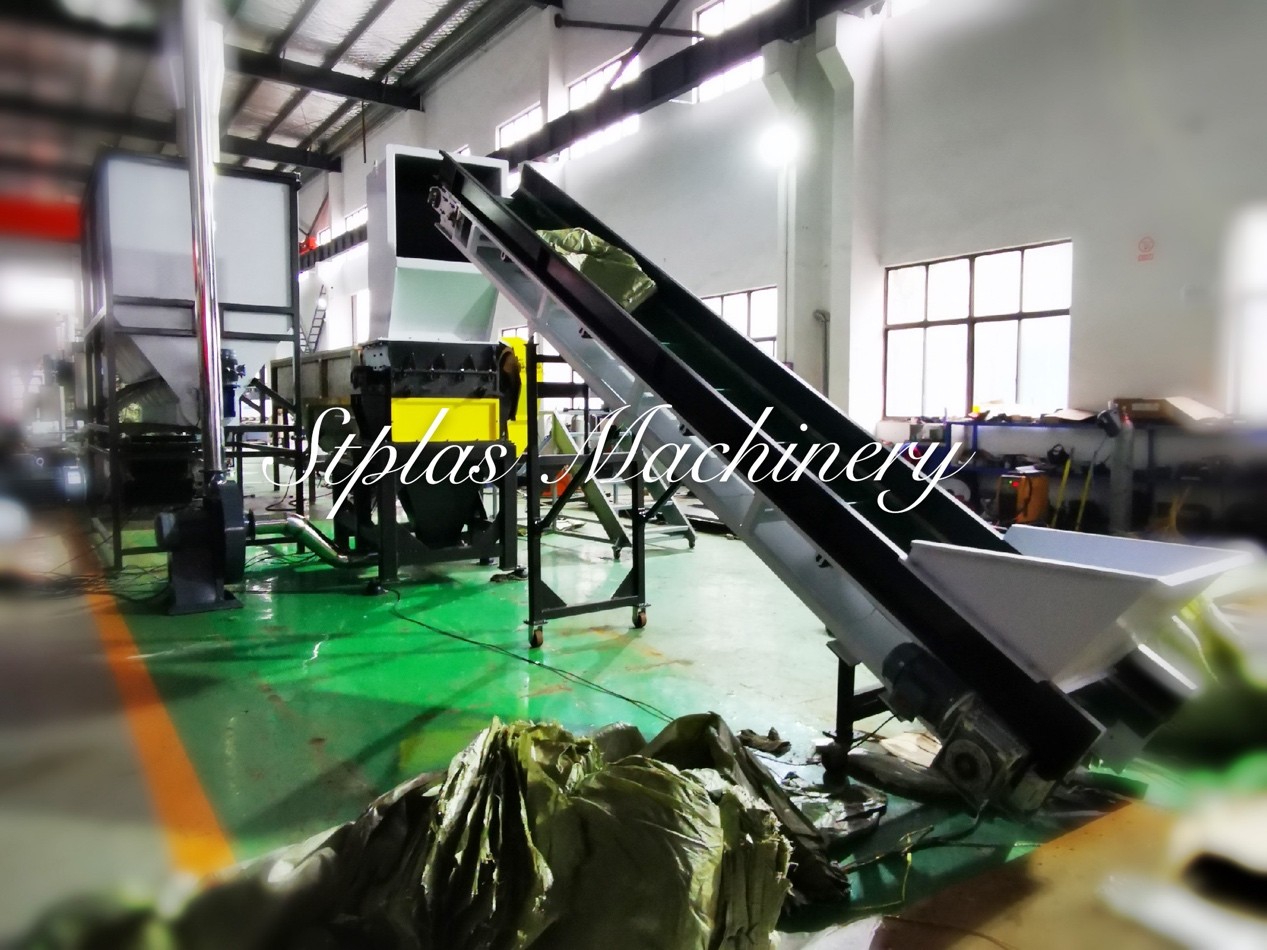

1.PP woven bags Griner, to make bags to small pieces:
Main Technical Parameter:
Model | Number of Fixing Blade (pcs) | Number of rotator Blade (pcs) | Main Shaft Diameter(mm) | Motor Power(KW) | Auxiliary motor(KW) | Capacity(kg/h) |
STC-800 | 4 | 6 | 450 | 37 | - | 500 |
STC-1000 | 4 | 6 | 630 | 55 | - | 1000 |
STC-1200 | 4 | 10 | 750 | 90 | - | 1500 |
STC-1400 | 4 | 10 | 750 | 110-132 | 4 | 2000 |
STC-1600 | 4 | 10 | 800 | 160 | 6 | 3000 |

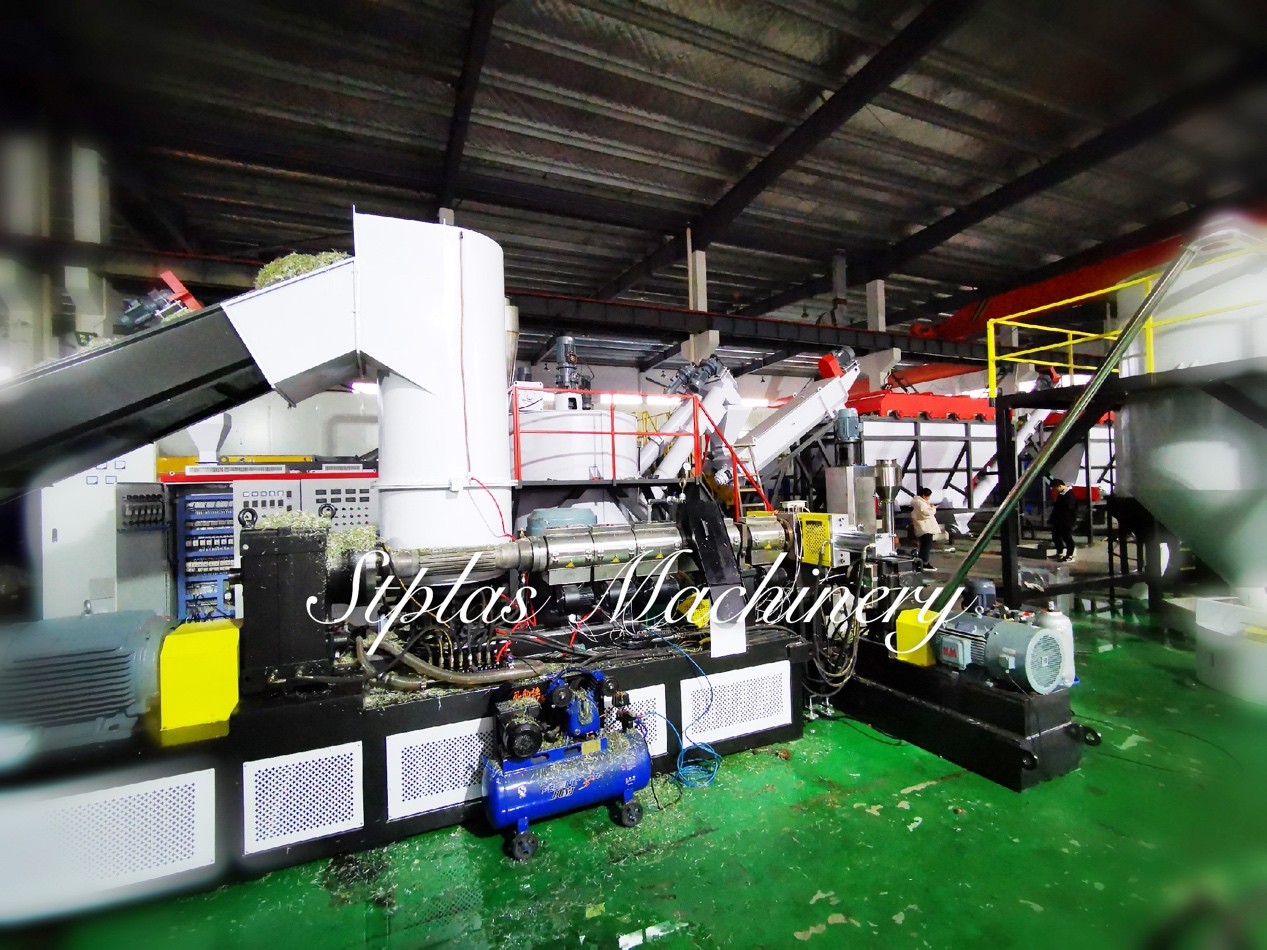

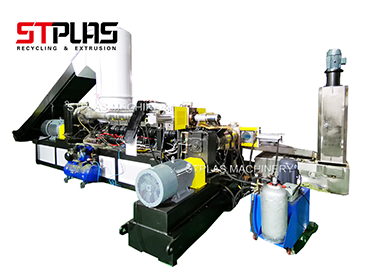

2. PP woven bags pelletizing line, to make bag scraps to granules.
Main Technical Parameter:
Model | STML85/85 | STML 100/100 | STML130/130 | STML160/160 | STML180/200 |
Screw Dia. | 85 | 100 | 130 | 160 | |
L/D Ratio | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 | 28:1/10:1 |
Capacity (kg/h) | 150-250 | 250-350 | 400-500 | 500-600 | 900-1100 |
Compactor Motor (kw) | 37 | 55 | 90 | 110 | 185 |
First Stage Motor (kw) | 55 | 90 | 132 | 185 | 250 |
Second Stage Motor (kw) | 22 | 30 | 45 | 55 | 75 |
Total Electric Power(kw) | 185 | 235 | 370 | 477 | 675 |

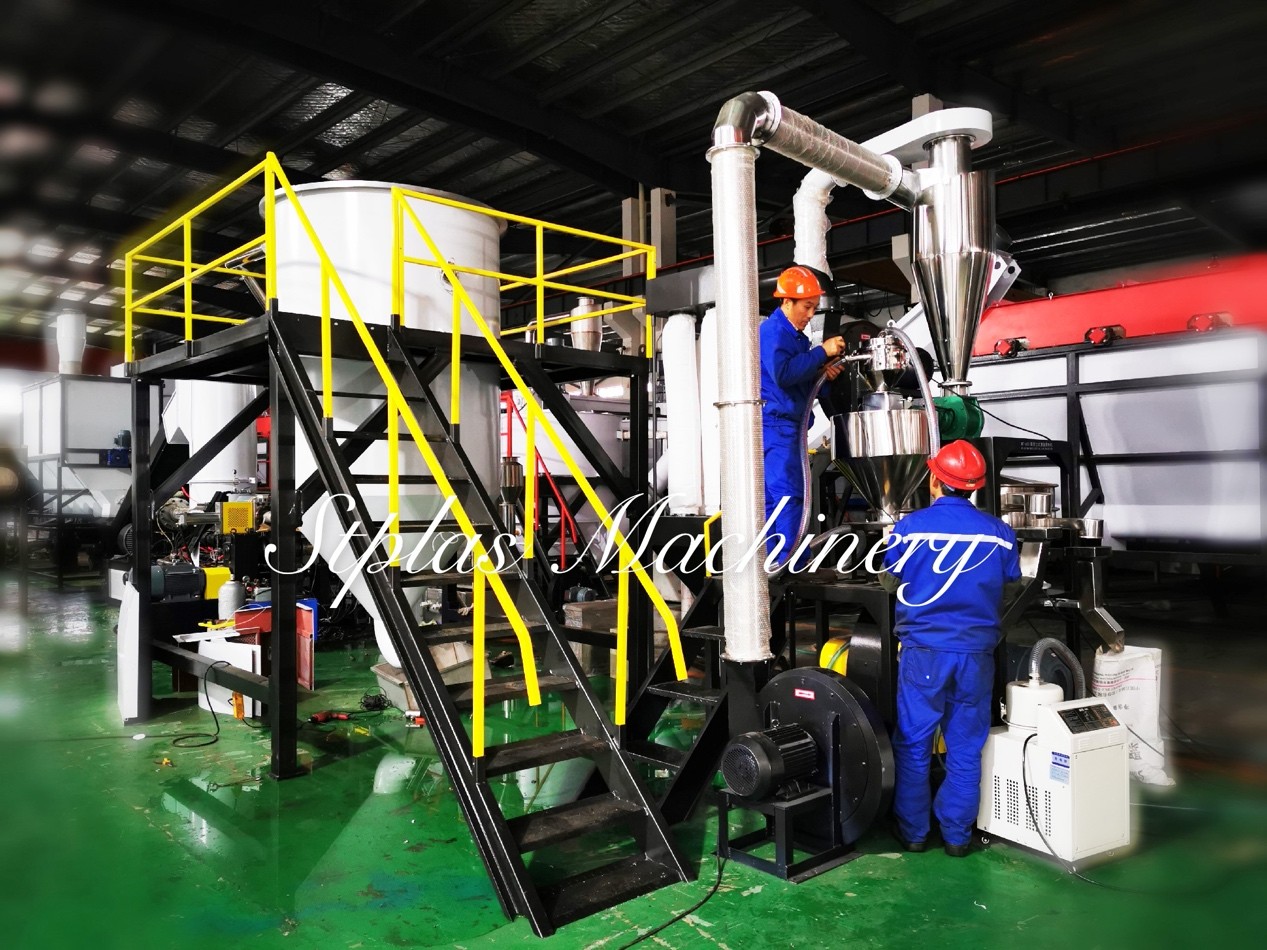

3. PP woven bags pulverizer, to make granules to powder.
The final products:
All of our machines can be design, so welcome to contact with us.
