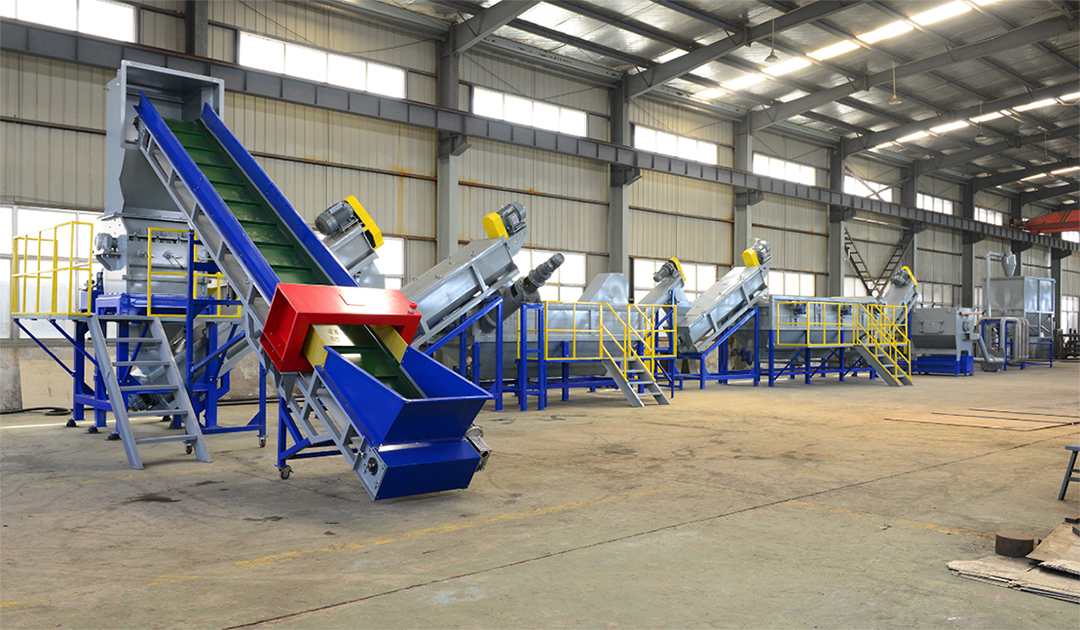

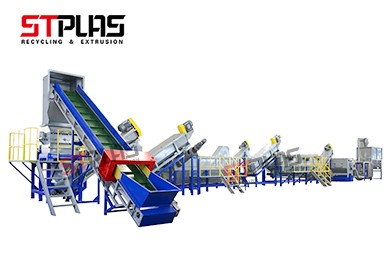

PP woven bags washing line

Scan the QR code

PE PP soft material washing line can process PP woven bags, plastic jumbobags, plastic shopping bags, PP PE film

Inquire
Share to:

Machine Features

PP woven bags washing line


PE PP soft material washing line can process PP woven bags, plastic jumbo bags, plastic shopping bags, PP PE films etc.


Description

Material: baled or loose PP/PE film/bag/woven bag

Finished product size: 50-60mm

Moisture content:<10%

Remark: we can customize the washing line according to client's material and product requirement.

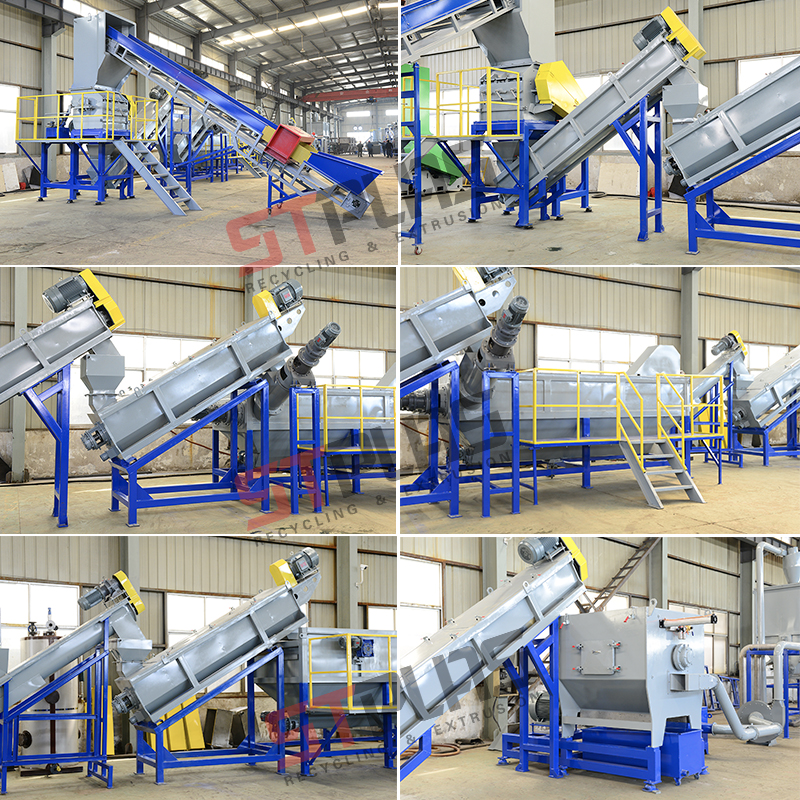

Detail images:








Technical parameter of PP woven bags washing line:



Model

STPEPP-300

STPEPP-500

STPEPP-1000

STPEPP-1500

Capacity (KG/H)

300

500

1000

1500

Water consumption(T/H)

2--3

3--4

4--5

5--7

Power Consumption(T/H)

130--160

210-260

300-350

400-460

Staff(person)

2-3

2-3

3-5

3-5

Factory Area M2

30*4*5

40*4*5

45*6*5

55*6*5



Due to the soft material has a problem is very loose, and has much water content inside. Our company has carried out a lot of research in response to this series of problems. To this end, it has been found that the use of an extruder pelletizer after crushing and cleaning will have a better effect and a high energy utilization rate. The material can be directly used for pelletizing or other extrusion applications.

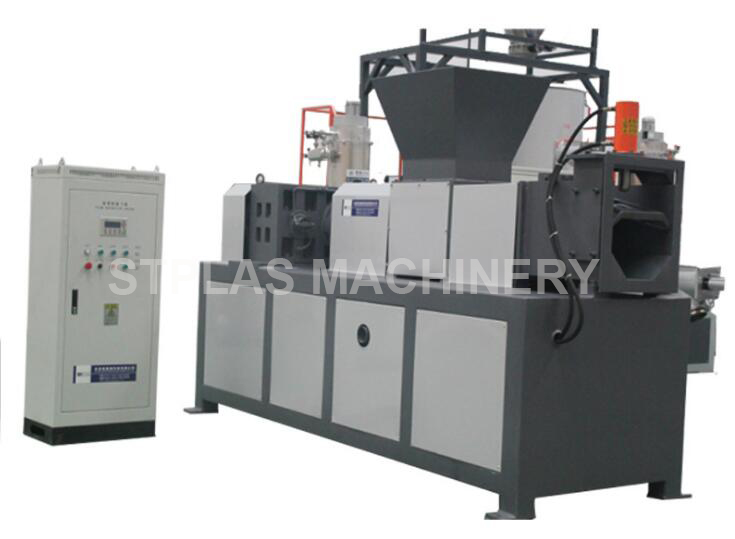

Technical Parameter of bag/film squeezer dryer:

Capacity

300-400kg/h

Spiral Diameter

Φ300mm

Rotary Speed

55rpm

Main Motor power

90KW

Cutting pellet motor

5.5KW

Cutting Speed

380RPM

Pellets size

>=12mm

Fan Power

7.5KW

Storage Hopper

600L



Final products:

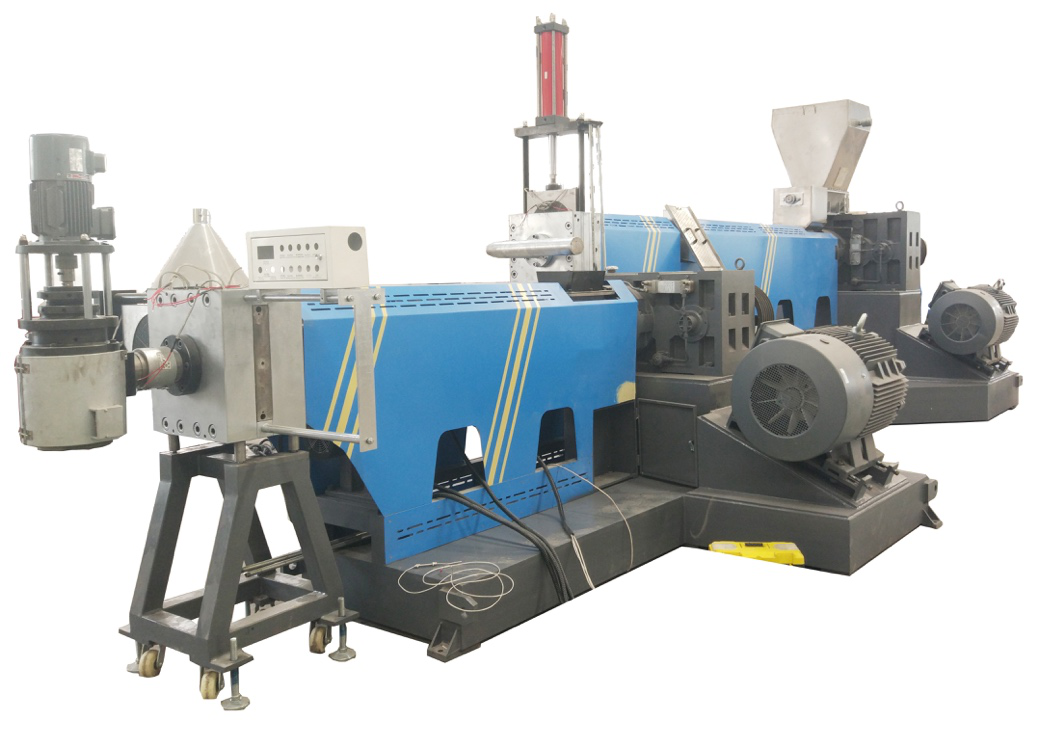

After washing, that need PE PP Pelletizing line.
