two stage PE pelletizing line
Two stage extruders PP PE pelletizing line for strand cuttingWhich kind material suit for PP PE strand cutting e
InquireMachine Features

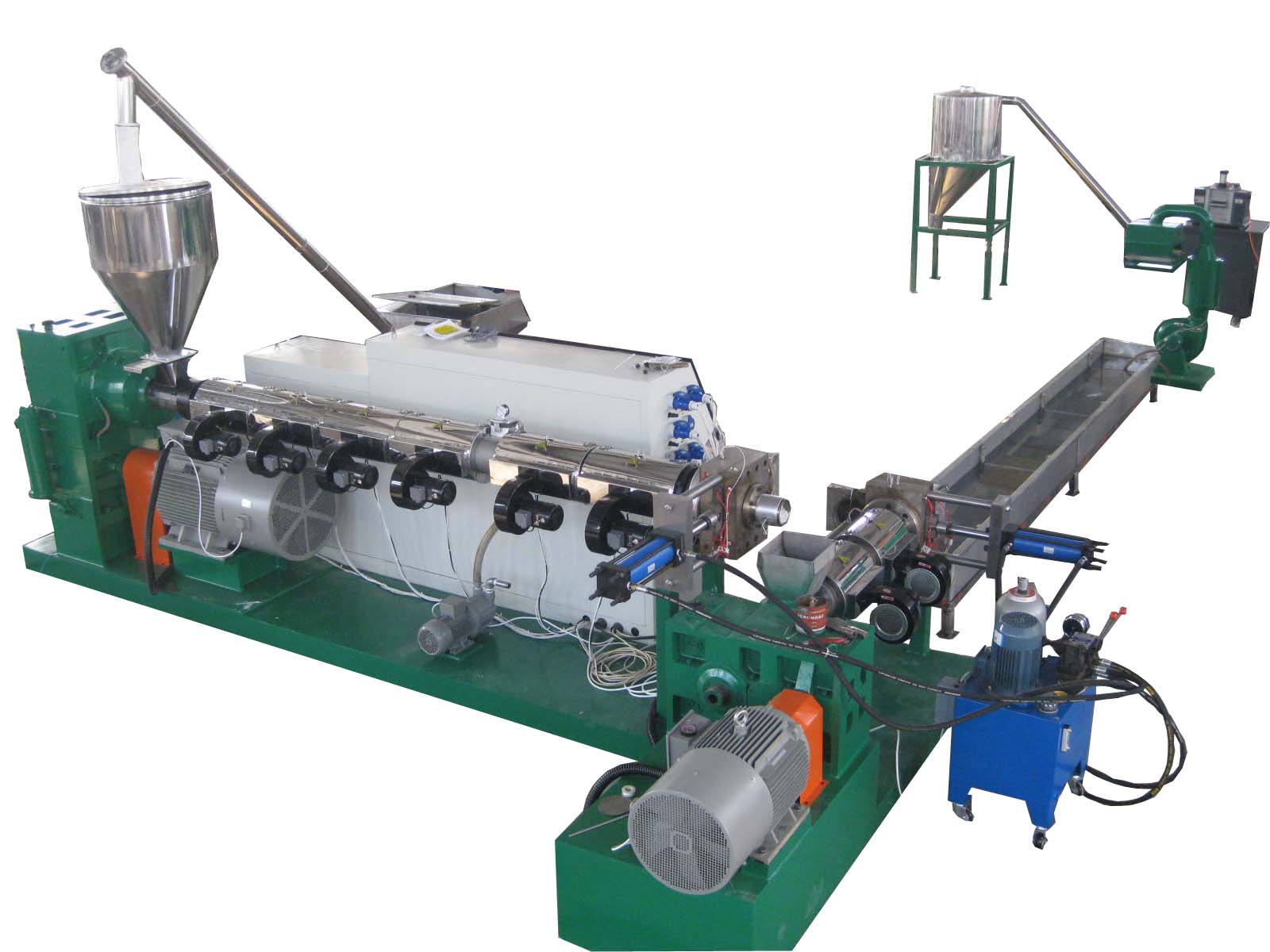

Two stage extruders PP PE pelletizing line for strand cutting
Which kind material suit for PP PE strand cutting extruder?
PP,PE, LDPE, LLDPE, HDPE, BOPP, EPS,etc.
Material form: Woven bags, pp pe film, printed LDPE film (rolls, loose, bundled), agriculture film, foamed plastics and raffia, etc.
The material must be crushed firstly, then go to extruder. If it is very dirty, it need crushing washing drying firstly, then go to extruder.
The complete PP PE pelletizing line Process Flow as below:
No | Machine Name | Qty(set) |
1 | Feeder | 1 |
2 | Single screw extruder | 1 |
3 | Hydraulic screen exchanger | 1 |
4 | sub extruder | 1 |
5 | Hydraulic screen exchanger | 1 |
6 | Die head | 1 |
7 | water cooling tank | 1 |
8 | Air Belower | 1 |
9 | pellets cutter machine | 1 |
10 | Storage hopper | 1 |
Technical parameters:
SJ series single-stage pelletizing machine (with side feeder Optional)
Model | ST-SJ-65 | ST-SJ-80 | ST-SJ-100 | ST-SJ-120 | ST-SJ-150 | ST-SJ-200 |
Screw Dia. | 65 | 80 | 100 | 120 | 150 | 200 |
L/D | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 | 28-30 |
Capacity | 60-80kg/h | 80-100kg/h | 150kg/h | 300kg/h | 400kg/h | 500kg/h |
SJ series double-stage pelletizing machine (with side feeder Optional)
Model | ST-SJ-100/100 | ST-SJ-120/120 | ST-SJ-150/150 | ST-SJ-200/200 |
Screw Dia. | 100 | 120 | 150 | 200 |
L/D | 28-30 10-15 | 28-30 10-15 | 28-30 10-15 | 28-30 10-15 |
Capacity | 120-180kg/h | 220-300kg/h | 300-400kg/h | 500-600kg/h |
More Photos:

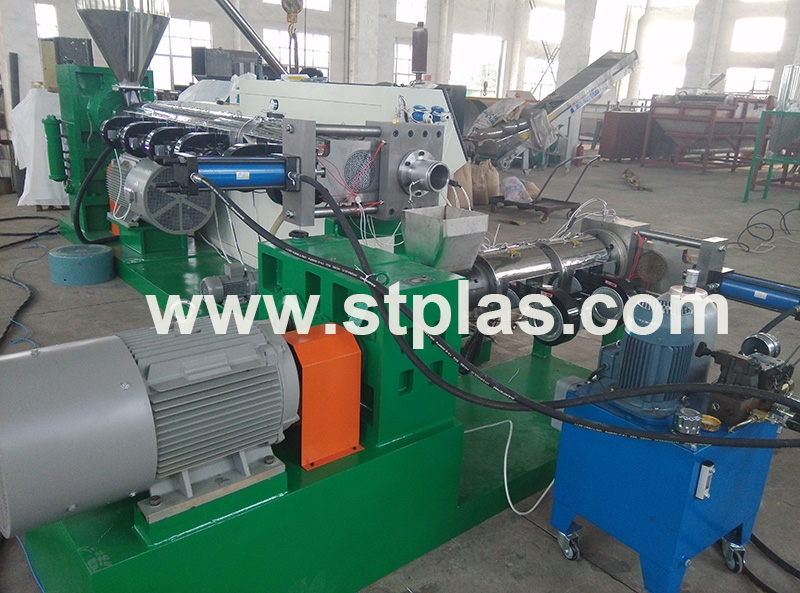

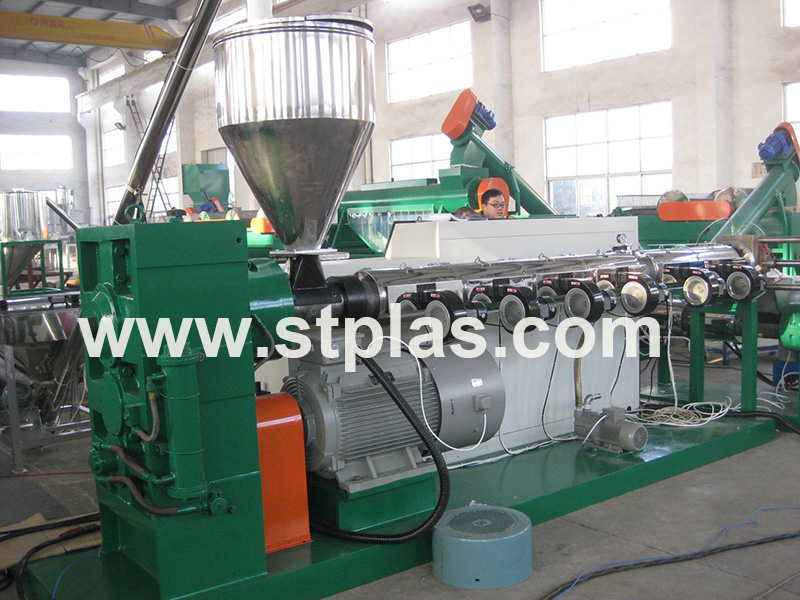

Main Extruder SJ120 extruder
Sub extruder:
STPLAS is a professional factory for manufacturing waste plastic recycling equipment, it mainly include crushing washing drying and pelletizing (PET bottle ,PE/PP film, bags, HDPE bottle /PP barrel, and plastic shreeder ,film squeezer cutter machine, plastic crusher ,label remover machine etc).
If you want to know more details, Contact with us freely!
