Product DescriptionThe sharpening is simple and convenient, and the sharpened blade is on a straight line, which

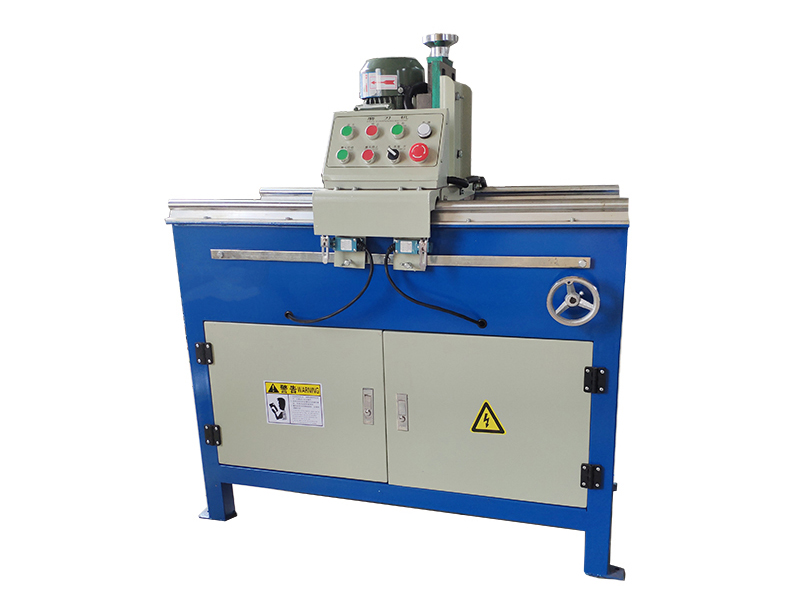

InquireBlade Sharpen Machine
Product Description
The sharpening is simple and convenient, and the sharpened blade is on a straight line, which increases the use strength of the blade compared with the manual sharpening, increasing the service life and processing capability of the blade. The machine body consists of six parts: the body, the table, the slide, the deceleration electrode, the grinding head and the electric appliance. The structure between the parts is compact, the appearance is beautiful and reasonable, and the grinding head is even and stable. It is suitable for all kinds of straight edge cutters. Processing. The machine tool consists of the fuselage, work table, linear slide bar, gear motor, grinding head motor and electric control components. The structure is compact, the shape is beautiful and reasonable, and the grinding head is even and stable. The machine has small size and light weight. It is effective and suitable for all kinds of straight edge tool processing.
Manufacturing Technique
Model | ST700 | ST1000 | ST1200 |
Working Range | 0-700mm | 0-1000mm | 0-1200mm |
Moving Motor | 90YSJ-4 GS60 | 90YSJ-4 GS60 | 90YSJ-4 GS60 |
Size of the grinding wheel | BWΦ 125*Φ 95*Φ 32*Φ 12 | BWΦ 125*Φ 95*Φ 32*Φ 12 | BWΦ 150*Φ 110*Φ 47*Φ 14 |
Working angle | 0-90° | 0-90° | 0-90° |
Moving Speed | 2.52m/min | 2.52m/min | 2.52m/min |
Grinding wheel Motor | 1.1KW | 1.1KW | 2.2KW |
Dimension(mm) | 1100*600*1290 | 1300*600*1290 | 1500*600*1290 |

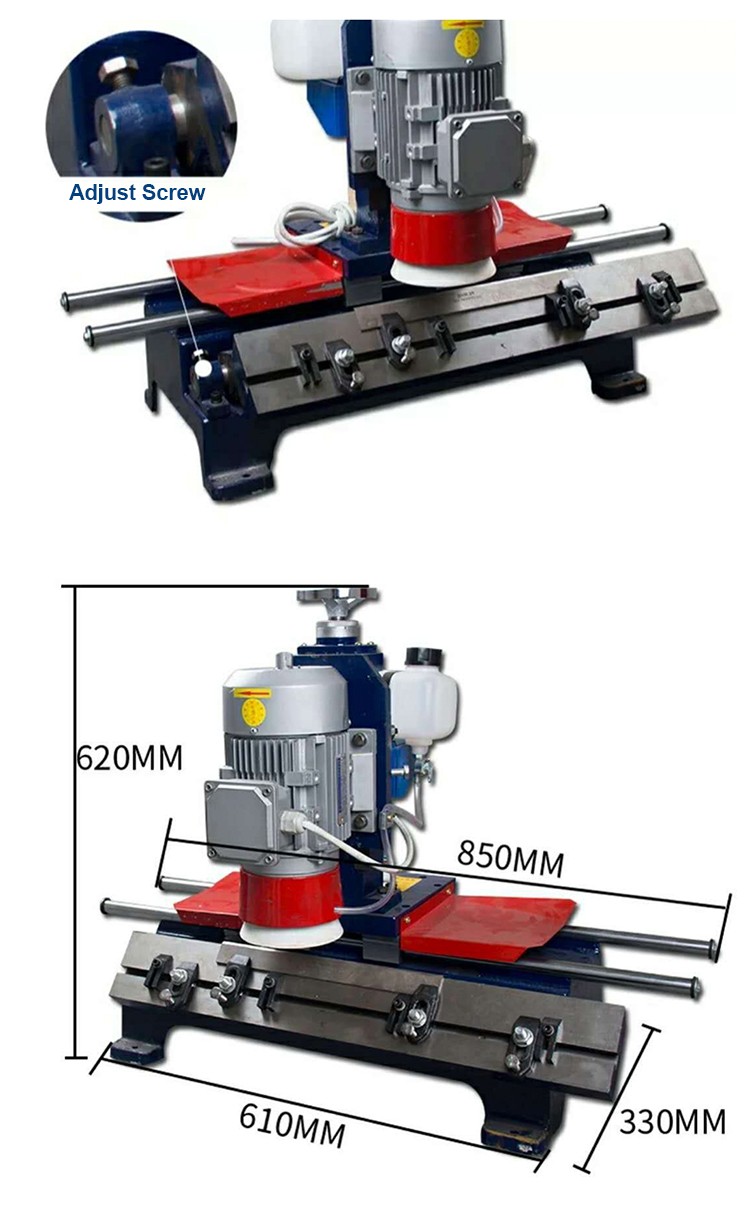

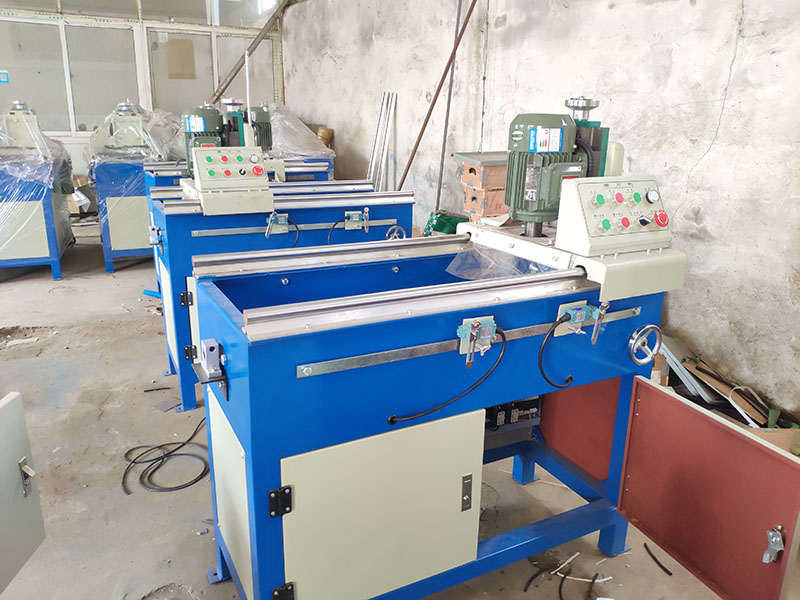

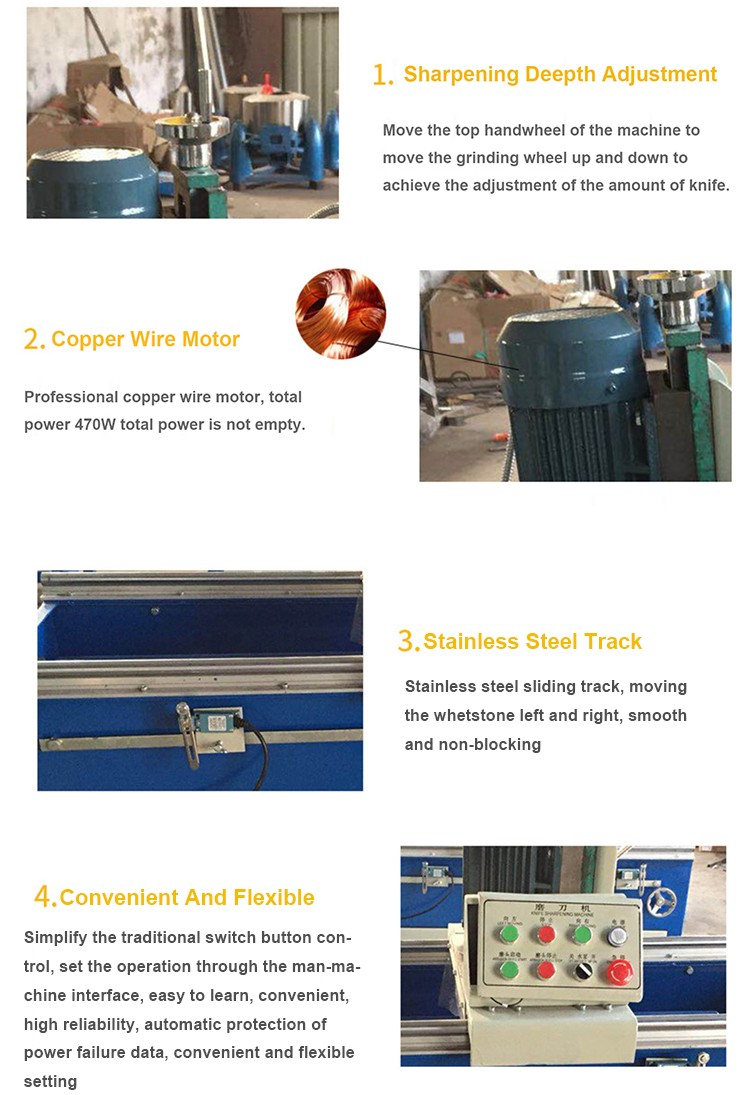

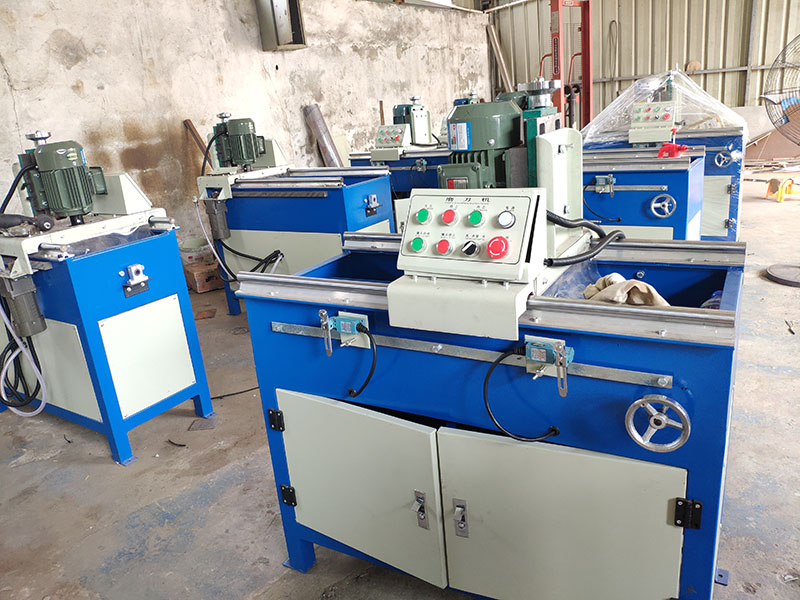

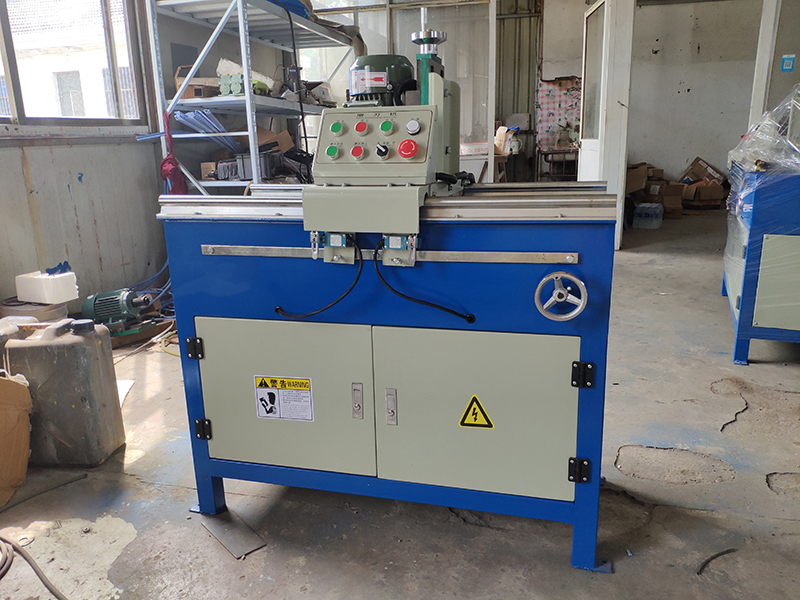

Details Images
Product Paramenters
Operating Process
1. Adjust the compression screw so that the pressure plate secures the blade to be ground to the tool holder. Turn the adjusting screw to adjust the blade fixing angle. 2. Adjust the amount of the knife, turn the top wheel of the machine to adjust the grinding wheel up and down, so that the front edge of the grinding wheel is in contact with the blade to ensure the grinding quality of the blade. 3. The top blade can be used to adjust the protrusion of the blade to ensure the grinding quality of the blade. 4. After adjusting the above parameters during the sharpening, the grinding operation can be carried out by pushing the sharpening stone by hand.
