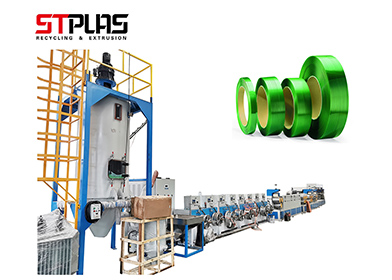

PET tape making machineAlso named PET packing wire drawing machine, one out of one embossing, one out of two hot melt packing tape production line PET strap making machine
InquirePET Tape making Machine
Also named PET packing wire drawing machine, one out of one embossing, one out of two hot melt packing tape production line PET strap making machine
Special twin screw extrusion technology and single screw extrusion technology can be choosing as per customer needs.
2.Process 100% recycled PP/PET bottle flakes or pellets.
3.Even plasticization and stable extrusion with PLC automatic control for the full line.
4.As per different requirements, changing a coating materials for make strap have better and special function. For example, the strap for packing cotton can be from enhancing the breaking strength and joint strength when welding strap.
5.Melt filter with two pistons with air venting design and back flushing.
6.Number of strap:1,2,4,6,Width: 5mm-22mm,Thickness: 0.5mm-1.5mm
7.Workers: 2 -3 workers per shift, 12 hours/shift.
Production process of PET strapping production line:
Raw material mixing drying (pre-crystallization)- Extrusion heating and melting- Water into the mold to form a strip embryo- Heating and stretching forming- Ginning (not ginning)- Annealing and cooling (setting treatment)- Winding - Wrap up and store.
Machine Parameter of PET tape making machine:
Model | Capacity (kg/h) | Tape size (mm) | Installed power (kw) | Man power (person) |
SJ75/30 Single tape | 80-100 | 9-25 | 100 | 1-2 |
SJ90/33 double tape | 200-250 | 9-30 | 150 | 1-2 |

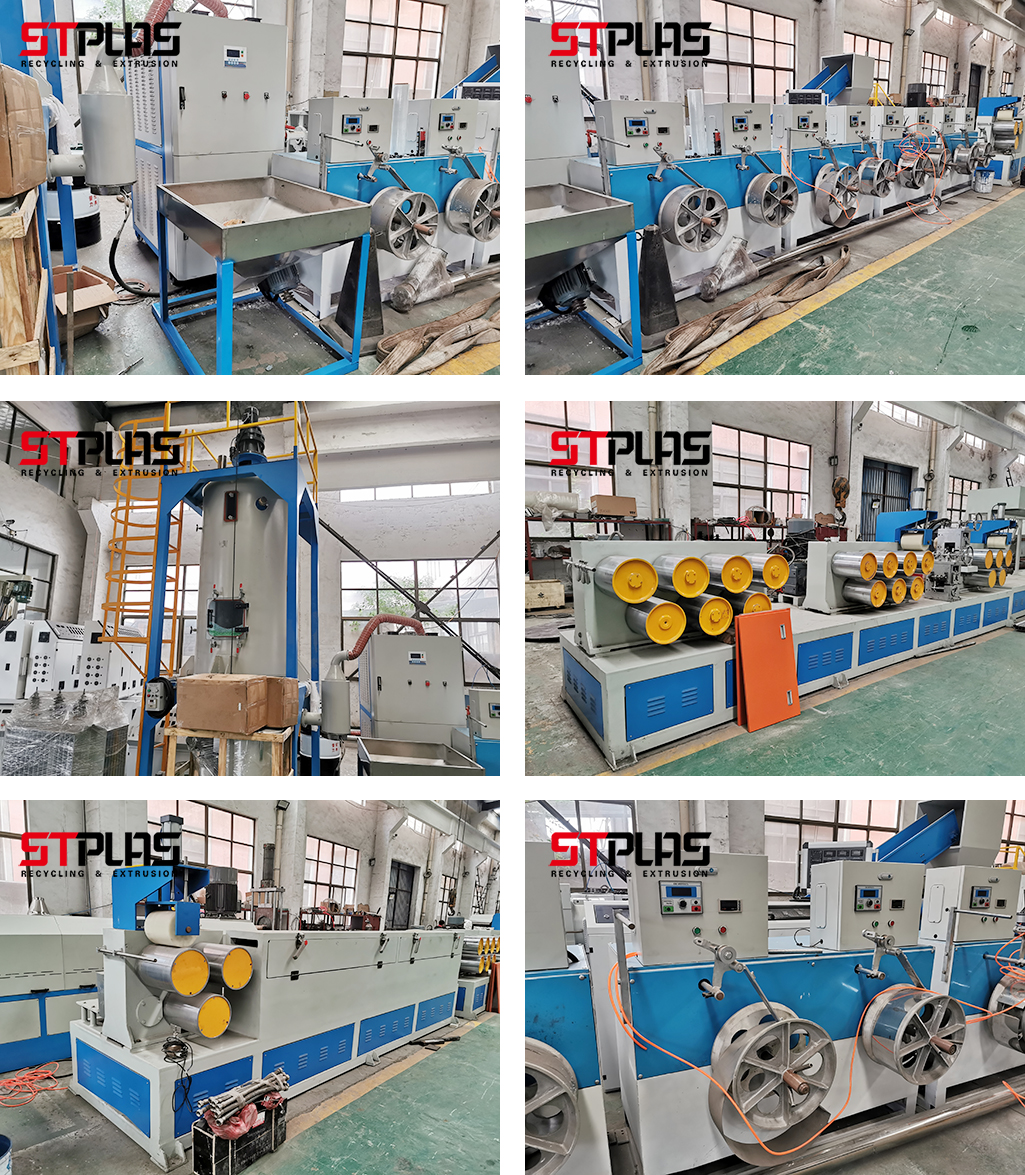

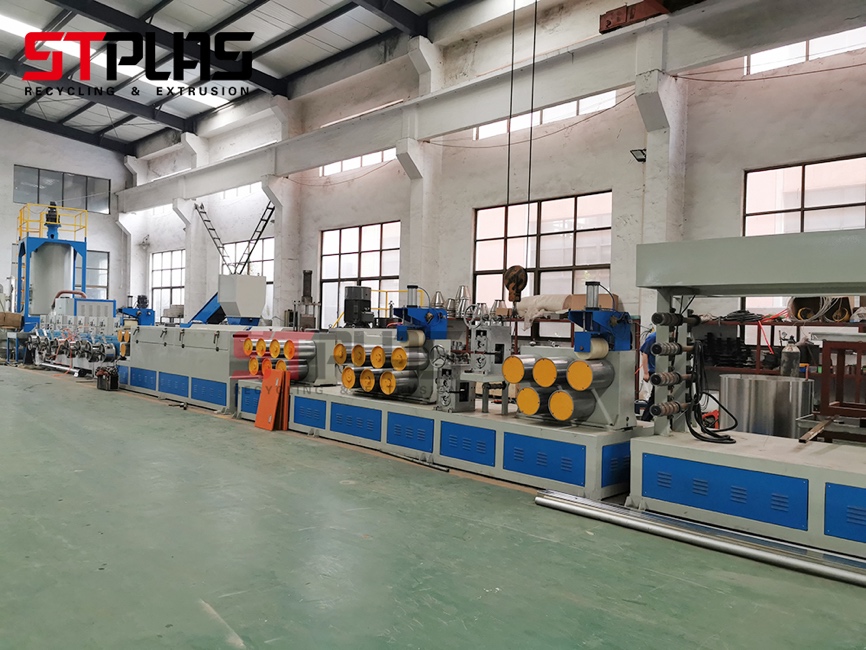

More photos of PET strap production line:
Welcome to have inquiry.
We also can supply PET bottle crushing washing drying line
PP PE crushing washing drying line
Plastic crusher
